CMYK (colour) PDF

Print

Last modified: December 15, 2022

Print this page

This PDF contains all the common colour and graphic elements for each page.

For single edition titles
This uses all layers and print finish layers in the document to make a COMPOSITE PDF/X4 PDF. This PDF will contain all the elements of the inside pages as single pages in one PDF file.

For co-edition titles
This uses only the “CMYK” layer and print finish layers in the document to make a CMYK PDF/X4 PDF. This PDF will contain only the colour elements of the inside pages as single pages in one PDF file. Die-cuts, Emboss, Foils, Spot colours etc, can also be used in this setting.

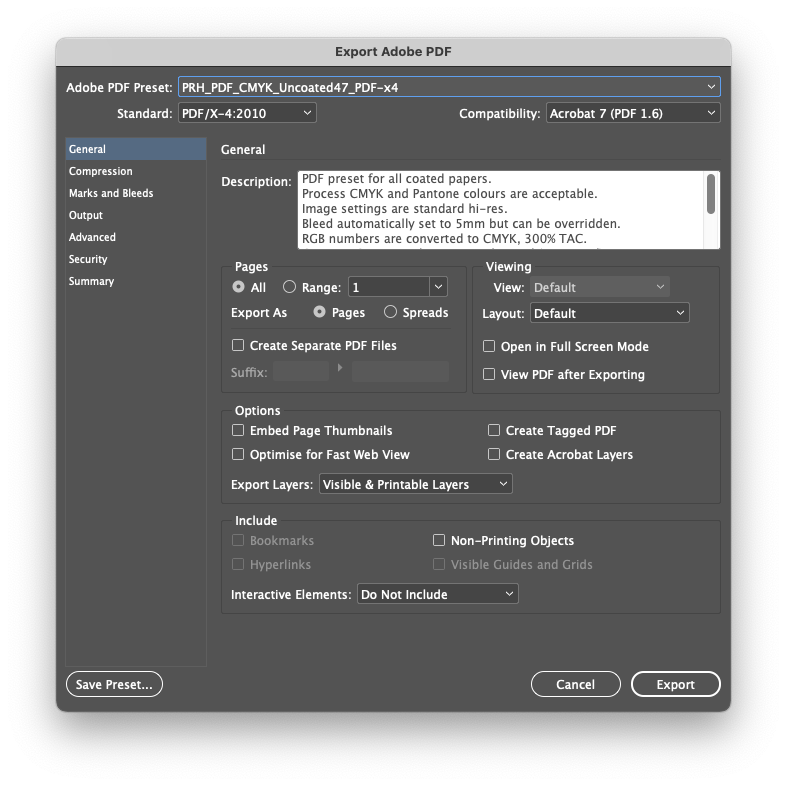

Export preset

PRH_PDF_CMYK_Coated39_PDFx-4 or PRH_PDF_CMYK_Uncoated47_PDFx-4

Use the data sheet below for PDF export settings for other operating systems such as Windows. To create a new setting go to FILE > ADOBE PDF PRESETS > DEFINE… (create a new preset using the data below, and check against the preset summary)

Please note that for uncoated books there is a special process that is involved. More information can be found on the Uncoated Books page.

InDesign export preset;

PRH_PDF_CMYK_Coated39_PDFx-4
DescriptionThe Penguin Group (UK) standard settings to use with InDesign CC when creating Composite PDFs (when not using co-editions) or the CMYK layer only (when using co-editions).
PDF PresetPRH_PDF_CMYK_Coated39_PDFx-4
CompatibilityAcrobat 7 (PDF 1.6)
Standards CompliancePDF/X-4:2010
GeneralPages: All

Spreads: Off

Generate Thumbnails: Off

Optimise PDF: On

Create Acrobat Layers: N/A

Export Layers: Visible and Printable Layers

Include Bookmarks: N/A

Include Hyperlinks: N/A

Export Nonprinting Objects: Off

Export Visible Guides and Baseline Grids: Off

Create Tagged PDF: Off

Include Interactive Elements: Off

Multimedia: N/A
CompressionColour Images

Bicubic Downsample at: 300 ppi

for images above: 450 ppi

Compression: Automatic

Tile Size: N/A

Quality: Maximum


Greyscale Images

Bicubic Downsample at: 300 ppi

for images above: 450 ppi

Compression: Automatic

Tile Size: N/A

Quality: Maximum


Monochrome Images

Bicubic Downsample at: 1200 ppi

for images above: 1800 ppi

Compression: CCITT Group 4


Compress Text and Line Art: On

Crop Image Data to Frames: On
Marks and BleedsCrop Marks: On

Bleed Marks: On

Registration Marks: On

Colour Bars: Off

Page Information: On

Page Mark Type: Default

Weight: 0.25 pt

Offset: 5 mm

Use Document Bleed Settings: Off

Bleed Top: 5 mm

Bleed Bottom: 5 mm

Bleed Left: 5 mm

Bleed Right: 5 mm

Include Slug Area: Off
OutputColour Conversion: Convert to Destination (Preserve Numbers)

Destination: Coated FOGRA39 (ISO 12647-2:2004)

Profile Inclusion Policy: Don’t Include Profiles

Simulate Overprint: Off

Output Intent Profile Name: Coated FOGRA39 (ISO 12647-2:2004)

Output Condition: ISO Coated FOGRA 39

Output Condition Identifier:

Registry Name:
AdvancedSubset Fonts Below: 100%

Omit PDF: N/A

Omit EPS: N/A

Omit Bitmap Images: N/A

Transparency Flattener Preset: [High Resolution]

Ignore Spread Overrides: Off
