Overprint and Knockout

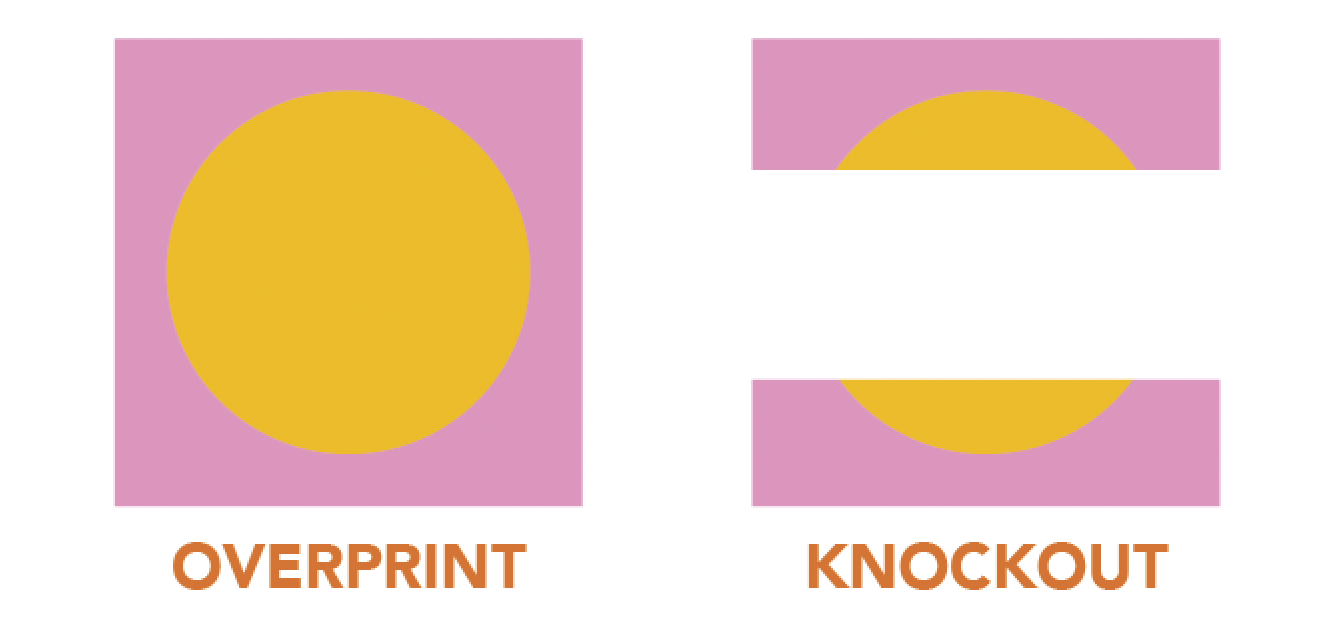

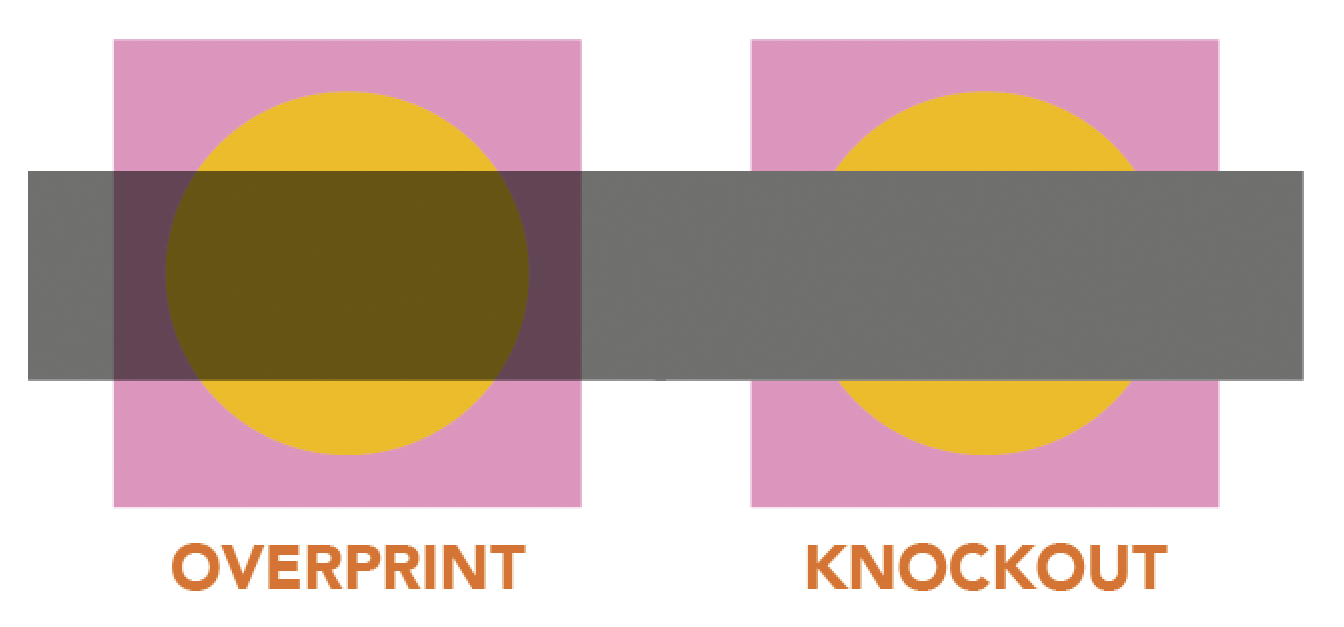

The graphic below demonstrates the difference between overprint and knockout, using a black 70% tint box over a 4 colour design.
This is the same graphic, unchanged, but without black ink visibility turned off in InDesign using separations preview.
Overprint in InDesign

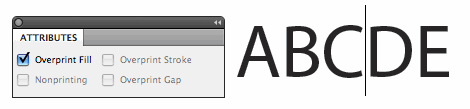

Overprint can be chosen by going to menubar WINDOW > ATTRIBUTES and checking the Overprint FILL and/or Stroke buttons.
‘Overprint Fill’ for text

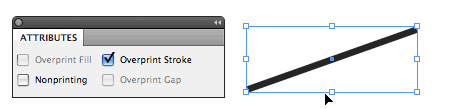

‘Overprint Stroke’ for lines

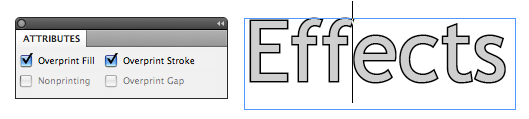

or sometimes both

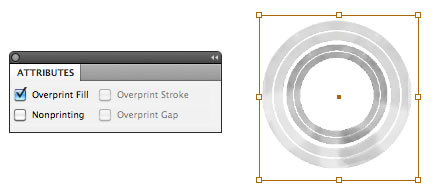

Bitmap and greyscale images can also be set to overprint in InDesign
Click to see a movie about how to do this…
Overprint in Illustrator
Overprint can be chosen by going to menubar WINDOW > ATTRIBUTES and checking the Overprint FILL and/or Stroke buttons.
